Product Details
＋
The Rikon® 13" Portable Planer with Helical Style Cutterhead and 2-Speed Feed - Model: 25-135H benchtop planer features a six row helical-style cutter head and 26 HSS insert cutters. Each indexable knife insert is precision sharpened on two edges and can be easily changed/rotated if damaged or worn – just loosen, rotate, and retighten! The alternating cutter pattern in the cutter head is super-efficient, and with a two-speed feed rate, produces a smooth cut surface. Planer features a threaded 4-post housing for extra head stability when running, side handle for quick table height adjustments, repeat cut setting lever, large fold-up extension tables, flat top with rollers for stock returning, and side carry handles.
Features:
- Helical Style Cutterhead

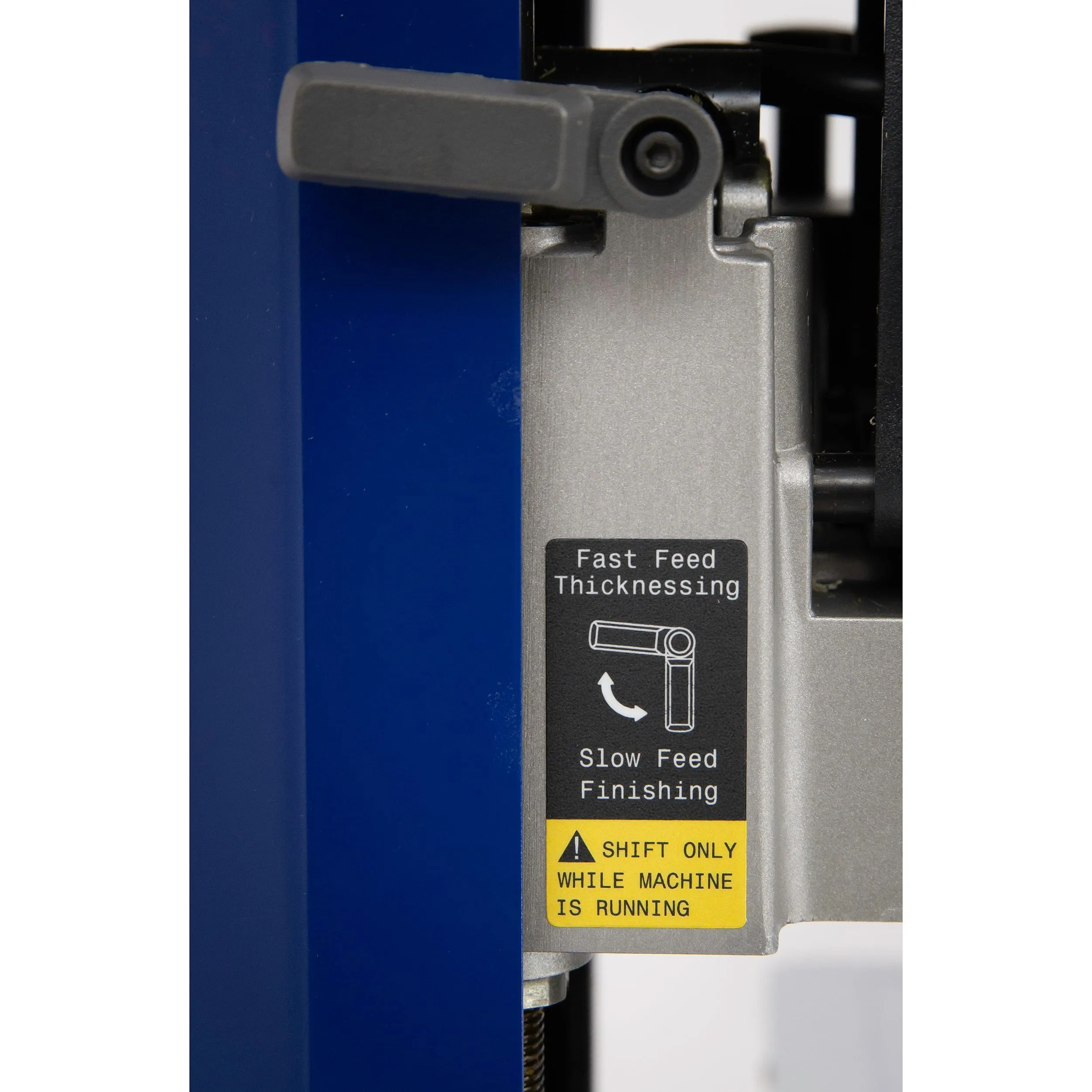

- 2-Speed Feed Rate
- All Steel Construction
- Easy Blade Access
- Infeed/Outfeed Table Extensions
- Five year warranty
Specifications:
- Motor: 15 Amp, 115V, 60Hz
- Motor Speed: 22,000 RPM
- Cutterhead: 2" diameter, 10,000 RPM
- Number of HSS Inserts: 26, 6 rows
- Maximum Cut Depth: 1/16" @ 6" x 13" Wide, 1/8" within 6" Wide
- Maximum Cutting Width: 13"
- Maximum Cutting Depth (Height): 6"
- Min. Length of Stock: 7"
- Min. Width of Stock: 3/4"
- Min. Thickness of Stock: 3/16"
- Feed Speeds (SF/Min): 16 and 26
- Table Size: 9-7/16" L x 13-1/16" W
- Extension Tables (2): 12" L x 14" W
- Dust Port (OD): 4" or 2-1/2" diameter
- Dust Collection min CFM: 650
- Noise Level: 100 dB
- Unit Height: 19-1/4"
- Unit Width: 22"
- Unit Depth: 34-1/4"
- Base Size: 13-3/8" L x 22" W
- Net Weight: 68 lb.
What's Included:
- (1) Rikon® 13" Portable Planer with Helical Style Cutterhead and 2-Speed Feed
